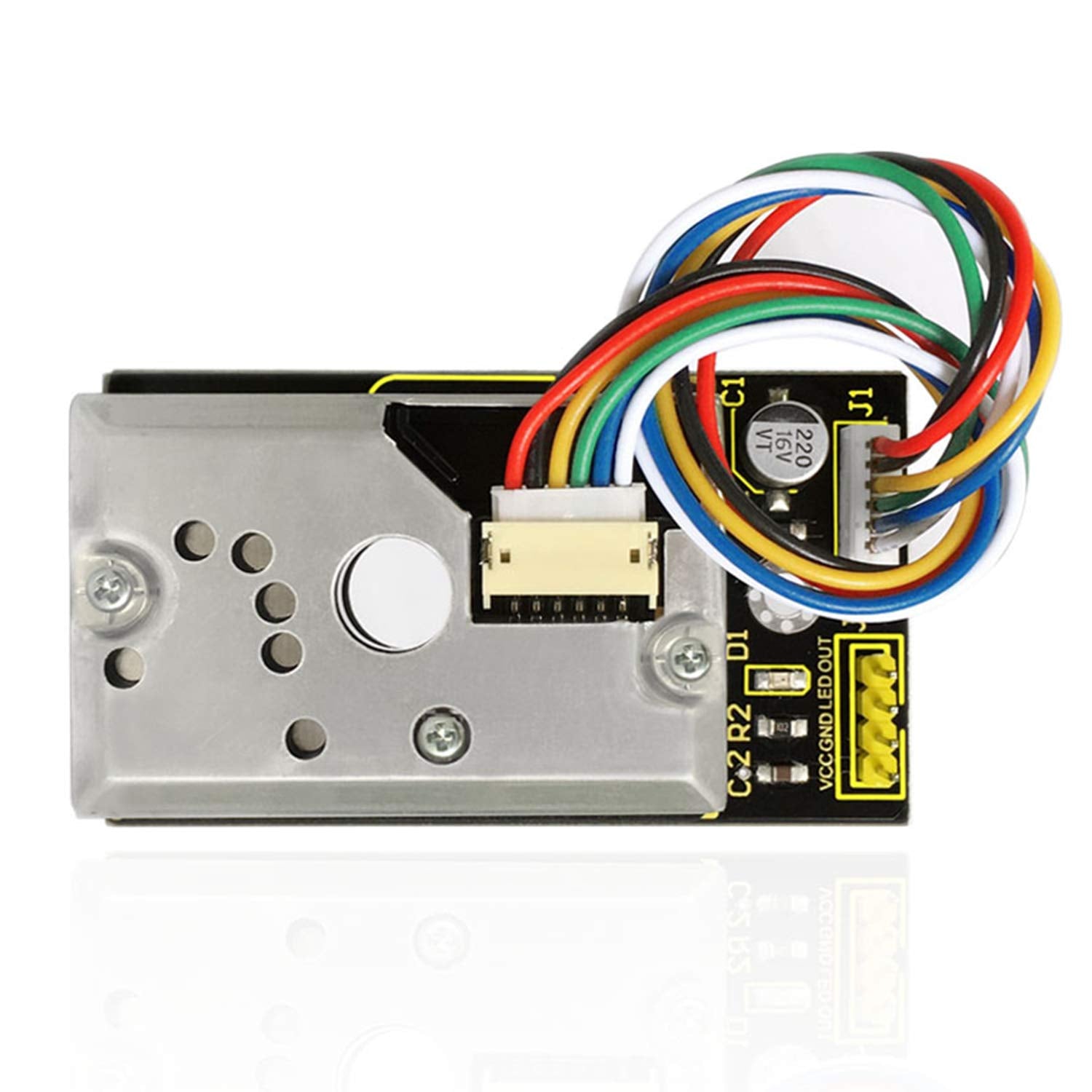

keyestudio Pm2.5 Sensor Dust Sensor Detector Module Onboard Measuring PM2.5 Air Purifier Air Conditioner Monitor for Arduino Sensor Kit

Product Details
- Dust Sensor based on Sharp GP2Y1014AU works well in detecting very delicate particle, like cigarette smoke, is a commonly used system of air purifier
- It has a ultra-low power consumption(Max at 20mA, Typical at 11mA ), and can be equipped with sensors up to 7VDC
- Analog voltage is proportional to measured concentration of dust, and sensitivity is 0.5V/0.1mg/m3
- Arranging them with across corners can detect the reflected light of dust in the air
- Contains IR LED and photoeletric transistor
Specification Parameters:
- Power Voltage: 5-7V
- Operating Temperature: -10℃ to 65℃
- Operating Current: 20mA (max)
- Detecting Value of Minimum Particle: 0.8μm
- Sensitivity: 0.5V/(0.1mg/m3)
- Voltage of Cleaning Air: 0.9V(typical)
- Storage Temperature: -20℃~80℃
- Life time: 5 years
- Dimension: 62mm×32mm×20mm
Applications:
- Air Purifier
- Air Conditioner
- Air Monitor
- PM2.5 Detector
Shipping List:

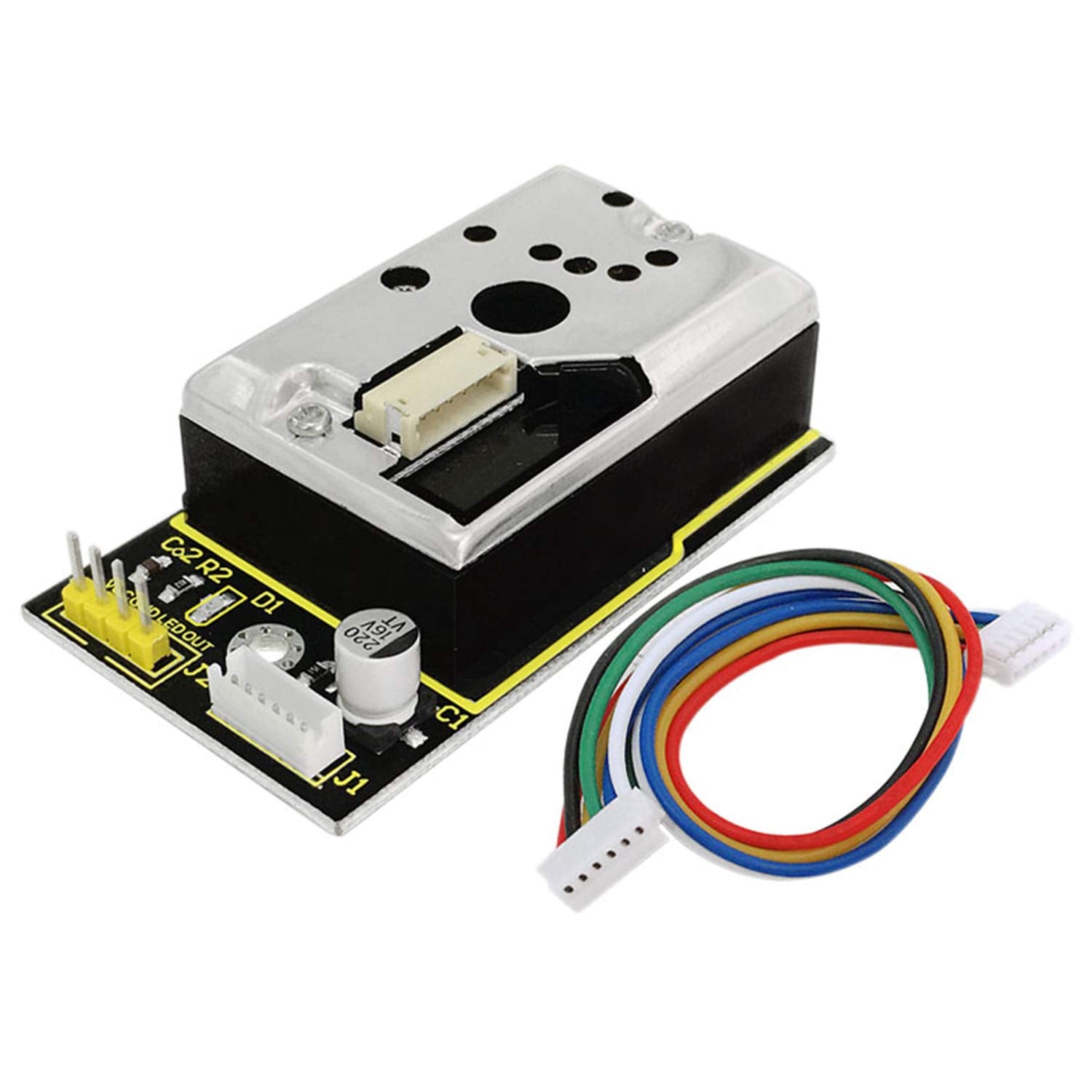

- Dust Sensor x 1
- ZH1.5MM 6-pin wire x 1
